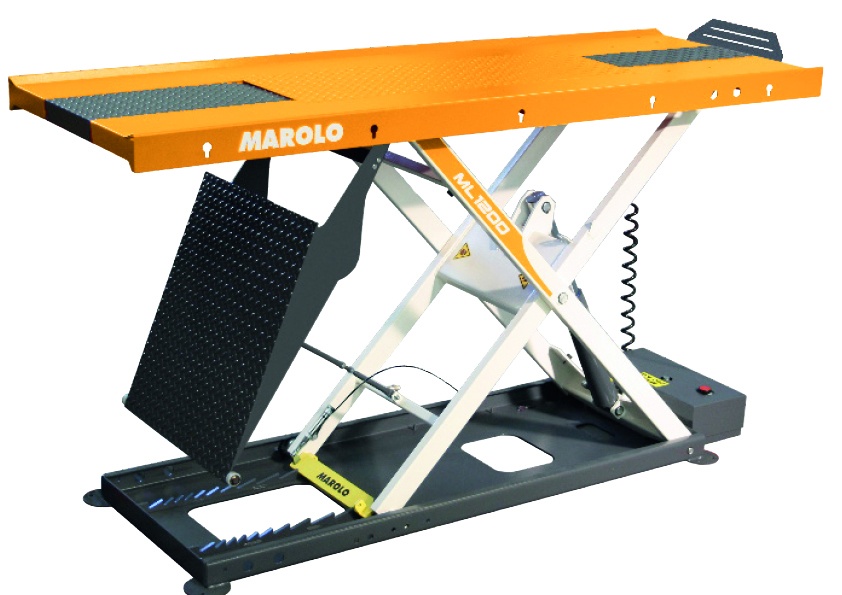

Lift 1200 H

Product code : 804122

Premium electro-hydraulic lift. Its robust construction and CE European standard certificate provide maximum safety, while the reliability of electro-hydraulic jack gives you the maximum comfort and long usage.

Two versions available: 230 V - 50 Hz, and 110 V - 60 Hz. The access to compressed air (8 bar) is needed as well, for the Automatic Safety device.



PREMIUM

For scooters, small bikes, big bikes

Dimensions

2200 x 750 mm/86,5” x 29,5”

Height

1200 mm/47"

Standard accessories
  • Rear and front trap doors
  • Elevated edges on the sides
  • Integrated checker plate for extra strength and safety
  • Air connections in the platform (a quick connection on the side for tools, standard connection under the platform for a wheel clamp)
  • Large and automatic run-up ramp in checker plate (rolls are plastic – they won’t damage the floor if in ceramics, less noise, ramp is large enough for a 3-wheel scooter, no slippage)
  • Automatic safety device (a small pneumatic jack blocks the dog in the right place – tooth)

Additional accessories
  • Lateral stand support
  • Extension kit
  • NG Motofixe – automatic front wheel clamp – recommended choice (standard Motofixe also available)
  • Addilift

Capacity

600 kg/1320 lbs
